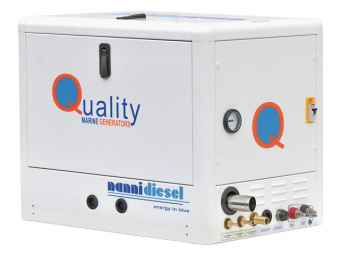

Nanni Diesel QMS 7.5M Generator 7.5 kW
€19.243,00
- Description
- Reviews (0)
Description
The Nanni Diesel QMS 7.5M generator is a robust 3-cylinder marine generator featuring an E-TVCS fuel injection system that ensures optimal fuel efficiency. With liquid cooling and indirect fuel injection, this generator provides reliable performance and a long service life. It delivers a continuous power output of 6.6 kW, with a maximum power of 7.5 kW.
Nanni Diesel QMS 7.5M Generator 7.5 kW
The Nanni Diesel QMS 7.5M is a powerful and efficient 3-cylinder marine diesel generator. Designed for reliable performance, it features the advanced E-TVCS (Enhanced Tumble Swirl Combustion System) fuel injection system, which optimizes the air-to-fuel ratio for reduced fuel consumption. This system provides significant fuel savings while requiring minimal maintenance, ensuring an economical solution for your marine power needs.
To prevent overheating and enhance durability, the QMS 7.5M is equipped with liquid cooling for all major components. The generator provides continuous power of 6.6 kW and has a maximum power output of 7.5 kW, making it suitable for various marine applications. It is housed in a sound-insulating enclosure to minimize noise and ensure a quiet operation. The QMS 7.5M generator is engineered for longevity and efficiency, delivering reliable performance for the most demanding environments.
Features:
- Start-up capability at low temperatures for reliable performance in cold conditions
- Liquid cooling system to prevent overheating and increase longevity
- Maximum power output of 7.5 kW
- Sound-insulating enclosure for quieter operation
- Closed-loop cooling system for enhanced thermal management
- Indirect fuel injection system for improved fuel efficiency
- IP21 Protection Class for added safety
- Mecc Alte alternator for superior power generation
Specifications:
- Cylinder placement: 3 cylinders in-line
- Kubota base engine
- Voltage: 230 V
- Maximum power: 7.5 kW
- Continuous power: 6.6 kW
- Frequency: 50 Hz
- Rated speed: 1500 rpm
- Fuel system: Mechanical
- Injection system: Indirect
- Pressurization: Atmospheric
- Engine volume: 1.1 L
- Phase: 1
- Power coefficient: 1
- Dimensions (in casing): 950 x 540 x 710 mm
- Weight (in casing): 271 kg
- Dimensions (without casing): 840 x 489 x 620 mm
- Weight (without casing): 224 kg
Generator Types:
| Tip | kW Max/Cont | kVA Max/Cont | RPM | V/A | Weight (kg) | Fuel Consumption Max (L/H) |
|---|---|---|---|---|---|---|
| F3.5M | 3.5/3.2 | 3.5/3.2 | 3000 | 230/15.2 | 105 | 1.7 |
| F6M | 6/5.5 | 6/5.5 | 3000 | 230/26.1 | 128 | 2.2 |
| S7.5M | 7.5/6.6 | 7.5/6.6 | 1500 | 230/32.6 | 260 | 2.5 |
| S10M | 10/8.8 | 10/8.8 | 1500 | 230/43.5 | 267 | 3.3 |
| S16M | 16.2/13.9 | 16.2/13.9 | 1500 | 230/70.4 | – | 4.8 |
| S10T | 7.7/6.8 | 9.7/8.5 | 1500 | 400/13.9 | 224 | 2.5 |
| S13T | 10.2/9.1 | 12.8/11.4 | 1500 | 400/18.4 | 244 | 3.3 |
| S21T | 16.7/14.3 | 20.9/17.9 | 1500 | 400/30.1 | – | 4.8 |
